Availability: | |
---|---|
xingxiang
01. Main Roller
Diameter: 220mm
Material: chromium 12 molybdenum vanadium
02. Plain roller
Material: chromium 12 molybdenum vanadium
03. Protective cover
Equipped with a protective cover to facilitate the outflow of dirty water
04. Wheel, Chain, Friction Plate, Wire arranging device New type wheel, 1.2 inch chain + friction plate speed adjustment + round-trip four-bar wire arranging device for wire take-up
05. Bevel gear
Bevel gear adopts carburizing treatment, higher hardness
06. Wheels and big gears
Wheels and big gears are treated with carburizing treatment, high hardness and durability
07. Oil box
The bevel gear is connected to the oil box to place the oil out
08. The bearings
The bearings are all special bearings for rolling mills, which are wear-resistant and not easy to break.
09. Motor
Adopt 22KW 4-pole motor
10. Reducer
Adopt 224 hard tooth surface reducer
11. The whole machine is welded with 160mm channel steel, the frame of the whole machine is stronger

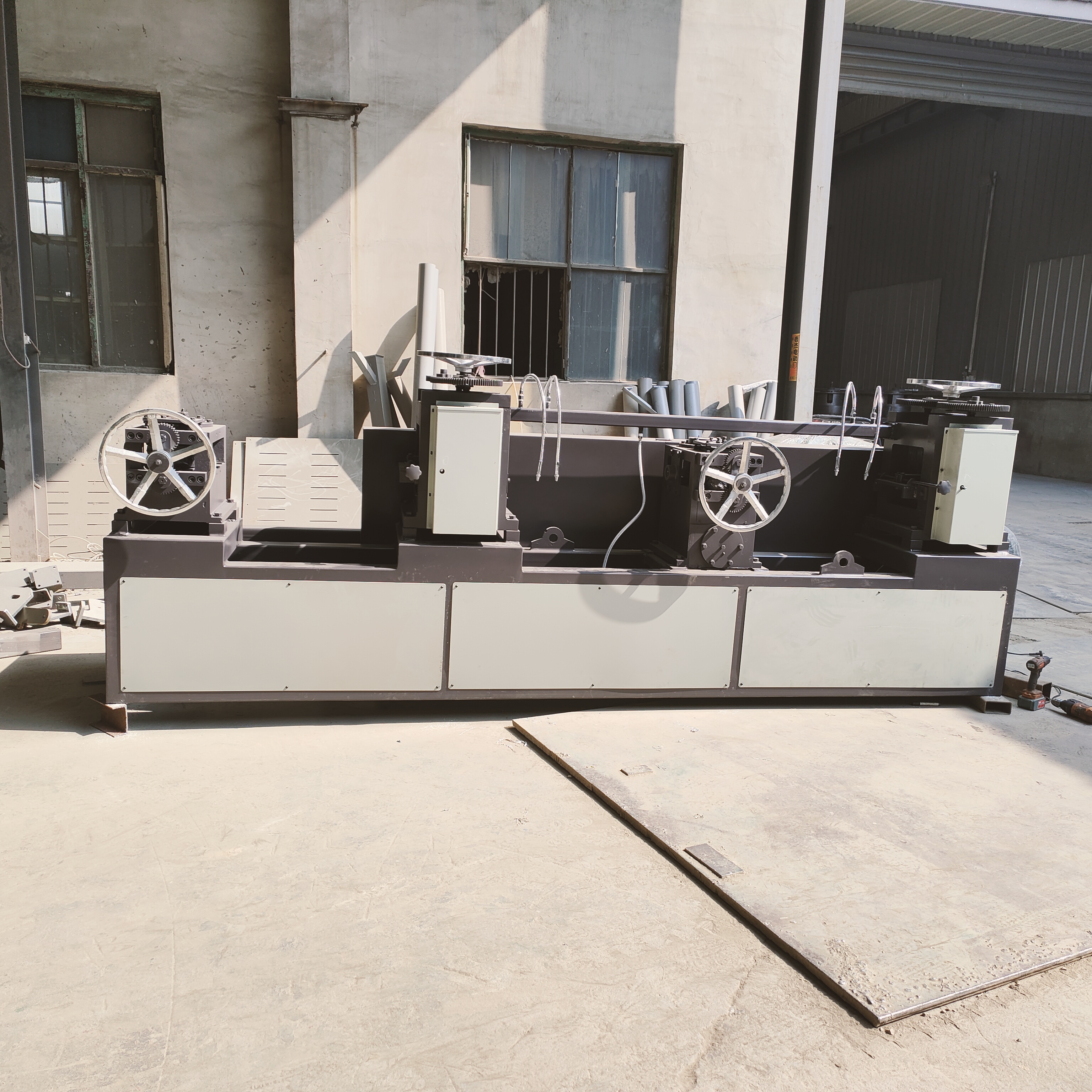

Round wire Rolling machine
Power | 22KW |
Frequency Converter | 22KW |
Reducer model | 500 type |
Rolling wire (input) range | thickness 1.5mm-6.0mm |
width | 2 cm or less |
Roller diameter | 220mm |
Roller material | chromium 12 molybdenum vanadium |
Speed | 1 m/s |
Machine dimensions | 3500*1700*1600 |
Weight | 3.2 tons |
Wire And Cable Industry
Construction Tie Wire Industry
Drawn Wire Industry
Wire Industry
Round wire Rolling machine-Product Packaging
Round wire Rolling machine-Product Packaging
Size | Weight | Packaging Details |
Non-standard, customized design | 1.2 T-10T | The normal package is plastic flm. If customer request, the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Non-standard, customized design | 1.2 T-10T | Main mechanical plastic packaging and steel wire fixed in the container, Accessories are packed in wooden cases |
Customer Visit
Founded in 2018 Hebei Xingxiang Machinery Manufacturing Co. , Ltd, original name Ren County Jinxiang Manufacturer, is one of the largest and the most powerful enterprises in Ren County. Located in Xingtai City, Hebei Province, we enjoy convenient access to major transportation networks.
Our company possess advanced facilities as CNC machining center, CNC machine tools, large vertical lathe and various first-class processing and welding equipment more than 30 sets.
To pursue "professional qualification and brand building” corporate objective and basing itself upon and giving play to existing advantages, taking “superior quality and honest price" as tenet, Xingxiang Machinery Manufacturing Co. , Ltd are prepared to expand wire-drawing international markets and seek mutual development with all of our customers.
Q:Are you manufacture or trading company?
A:We are manufacture. Our factory specialized in this business field since 1985, So we can give you a directly factory competitive price with customized request.
Q:Do you inspect the finished products?
A:Yes,we have QC departmengt.Will inspect the machine before shipping,to ensure there is no problem of the machine.
Q:How about after-sales service process?
A:We supply the detailed instructment and clear labeling in all the connecting place,thus our customers can try to install by themselves.
Surely,special technical engineers supply urgent technical support and consulting,at the same time,we assign the technical engineers to install and debug the machine according to our clients, then our clients will assume round-trip tickets,eating,accommodation costs and ensure they the personal and property safety, and pay 80 salaries per day.
Equipment Program part is life-long maintenance.
Q:How about the quality guarantee?
A:Usually one year. Within one year after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.Surely can be negotiable.
Q:How about the payment term?
A:T/T,L/C,trade assurance,we can all accept.
Q:Do you have import & export right?
A:Yes,we have,so we can export the carton machines to you directly,without any trading company agency.
